Alexandrite & Longpulse ND YAG Laser

Description

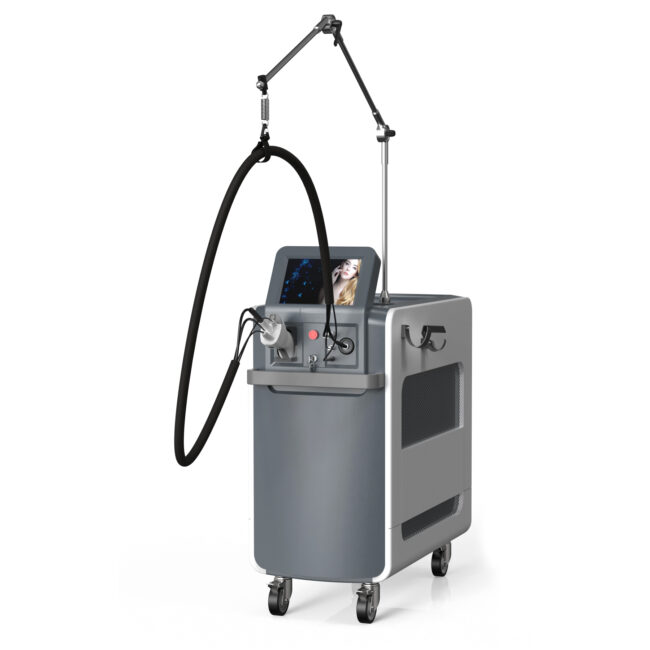

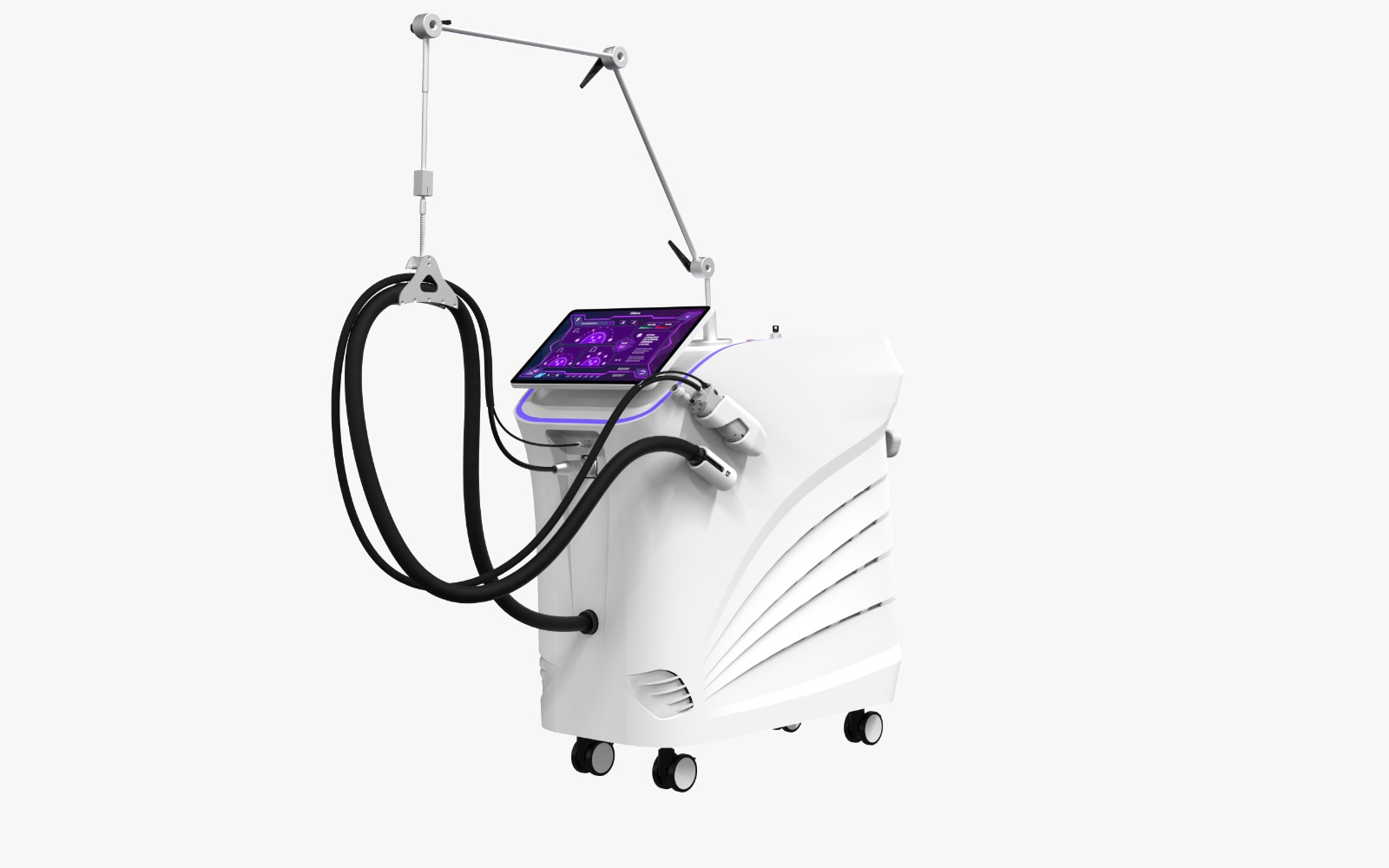

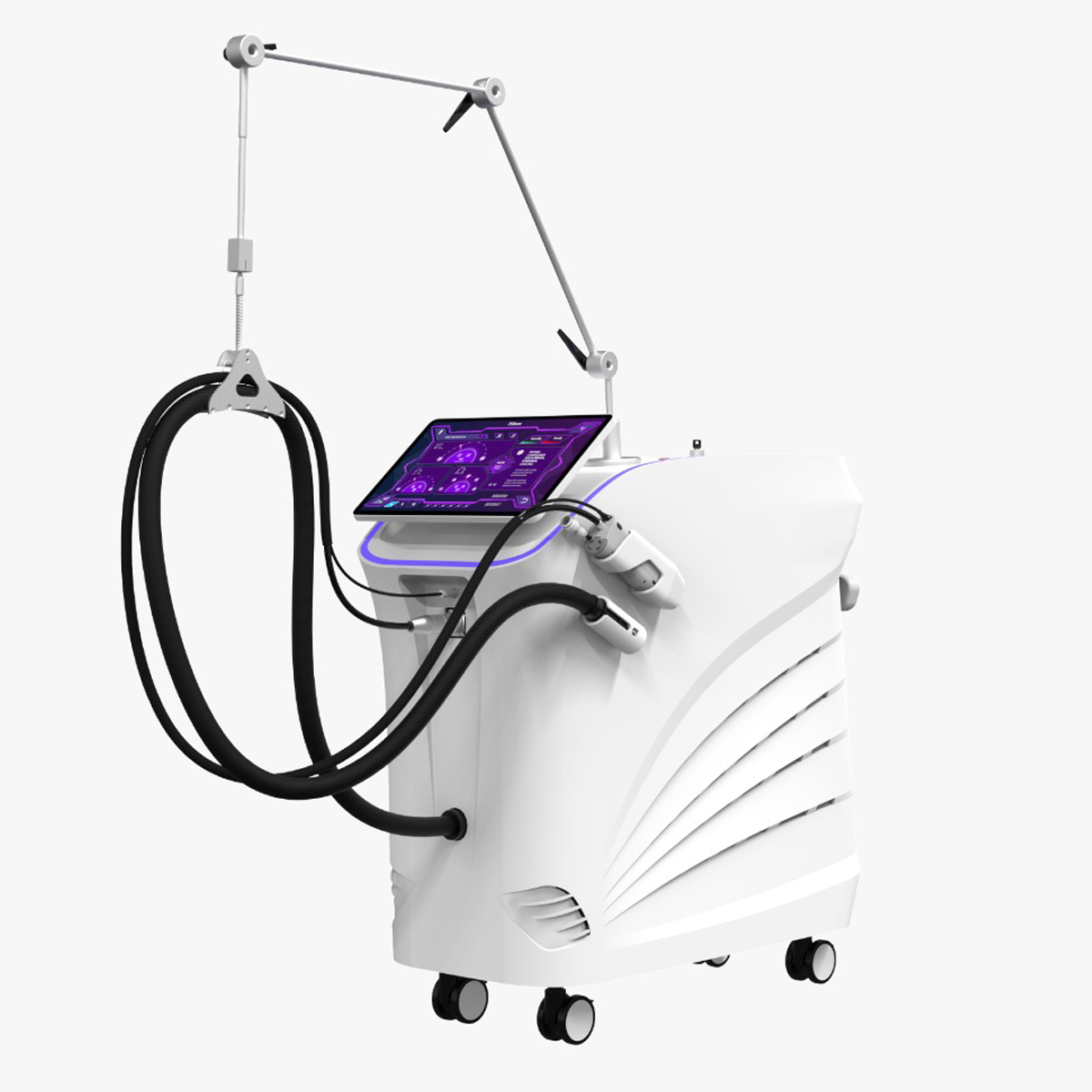

Alexandrite & Long-Pulse Nd:YAG Laser Overview (755 nm & 1064 nm)

This dual-wavelength laser system combines the 755 nm Alexandrite and 1064 nm Nd:YAG wavelengths, allowing safe and effective treatment for a wide range of skin types (Fitzpatrick I–VI). It is primarily used for hair removal, pigmented lesions, and vascular conditions such as spider veins.

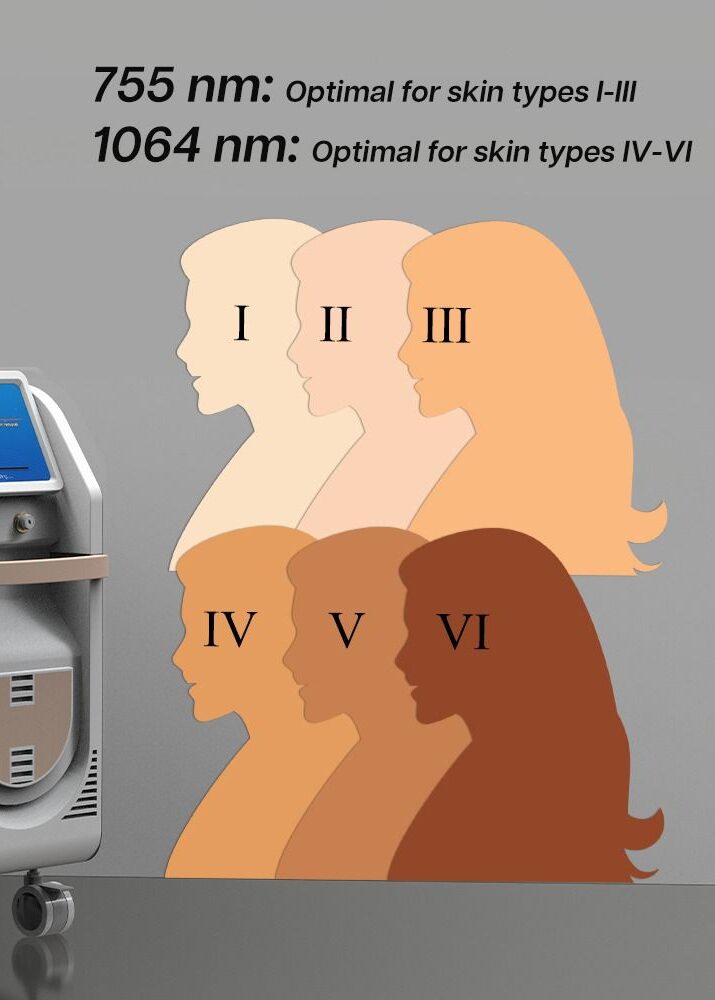

The 755 nm Alexandrite wavelength is ideal for lighter skin tones and targets superficial pigment and coarse dark hair. The 1064 nm Nd:YAG wavelength penetrates deeper and is better suited for darker skin types and vascular anomalies.

Key Features and Advantages

• Dual wavelength system allows for personalized treatments.
• Optical fiber delivery ensures stable, high-quality laser output.
• Adjustable pulse duration (10–100 ms) is particularly effective for treating finer or lighter hair.
• Spot size up to 18 mm enables faster treatments on large areas.
• No gel required, improving workflow efficiency.
• Advanced cooling system offers epidermal protection and patient comfort.
• Double xenon lamps (UK origin) provide stable, reliable energy output.

Treatment Applications

• Overview of 755 nm Alexandrite & 1064 nm Long-Pulse Nd:YAG Lasers

  1. Hair Removal

  2. Vascular Lesions

  3. Pigmented Lesions

  4. Skin Rejuvenation / Toning

  5. Onychomycosis (Nail Fungus)

  6. Wrinkles & Fine Lines

  Typical treatment protocols involve 4–6 sessions for hair removal and 1–3 sessions for pigmentation or vascular concerns. Sessions are spaced 4–8 weeks apart, depending on the indication.

  Clinic Notes

  Pre-cooling is recommended for client comfort. No gel is used; treatments are done on clean, dry skin. Always conduct a patch test, particularly on darker skin tones, to minimize risks of post-inflammatory hyperpigmentation (PIH).

  This system is efficient, safe, and offers long-term results across multiple dermatologic and aesthetic indications.

  Specification

  screen	10.4 inches Digital Real Colorful LCD
  Wavelength	755nm /1064nm
  Energy	110J@1064nm: 60J@755nm
  Pulse frequency	0.5Hz-10Hz
  Pulse width	0.25ms – 100ms (adjustable)@1064nm 0.5ms – 100ms (adjustable)@755nm
  spot-size	7 dfferent spot sizes can be chosen standard: 3/12/16/18mm can be chosen:6/10/24mm
  Handle	1.5mm America imported high power quartz fiber optic handle
  LGBT Part	Germany Infineon company imported
  Machine power	5000W
  Guide light	Germany imported 650nm+532nm semiconductor guide light
  Cooling system	Air cooling (100w high-power fan”2) Water cooling (10L acrylic water tank & high-power magnetic water pump) Semiconductor refrigeration (pure copper radiator) WE REDCD liquid nitrogen refigeration optional

  We recommend that you purchase the cooling system with this device as the treatment can be warm
